Renogy ShadowFlux N-Type 120W Rigid Solar Panel, 25% High-Efficiency & Anti-Shading, IP67 Waterproof Lightweight for RV/Pickup/SUV Charging

<p>Transform your solar experience with the Renogy 120W ShadowFlux panel—the market’s first N-Type module equipped with groundbreaking anti-shading innovation. Designed for reliability in unpredictable environments, this panel combines compact engineering, military-grade durability, and unmatched efficiency to keep your energy flowing, no matter the conditions.</p>

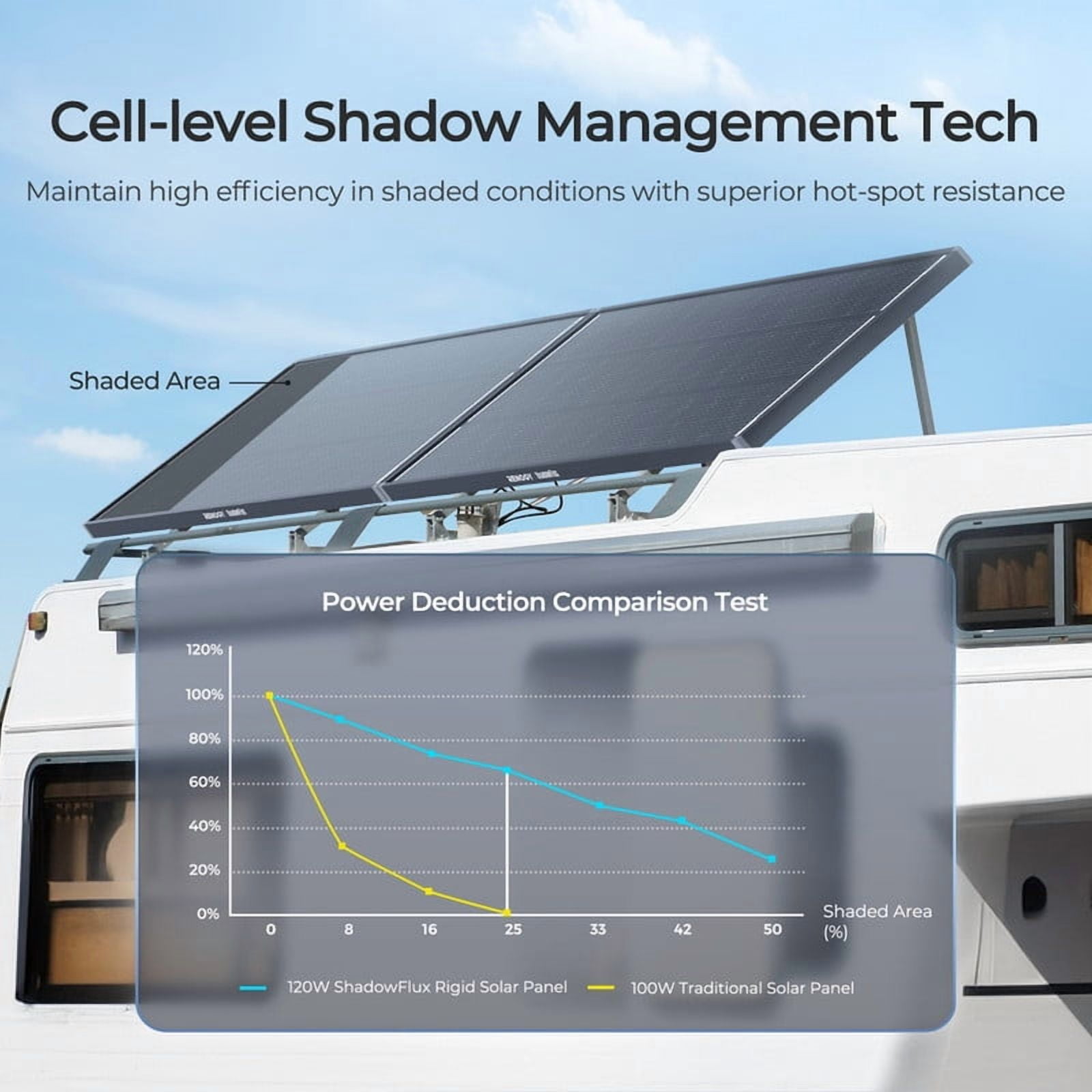

• ShadowFlux Anti-Shading Technology

  Renogy’s proprietary ShadowFlux technology redefines shaded performance.

  Minimizes energy loss from obstructions (buildings, plants, debris) with cell-level optimization, ensuring every cell delivers peak output.

  Reduces hot-spot risks by 30% and maintains stable charging voltage (33.69V open-circuit) even under partial shading or low-light conditions.

  Thrives in dappled sunlight, snow cover, or angled light, guaranteeing consistent power where traditional panels fail.

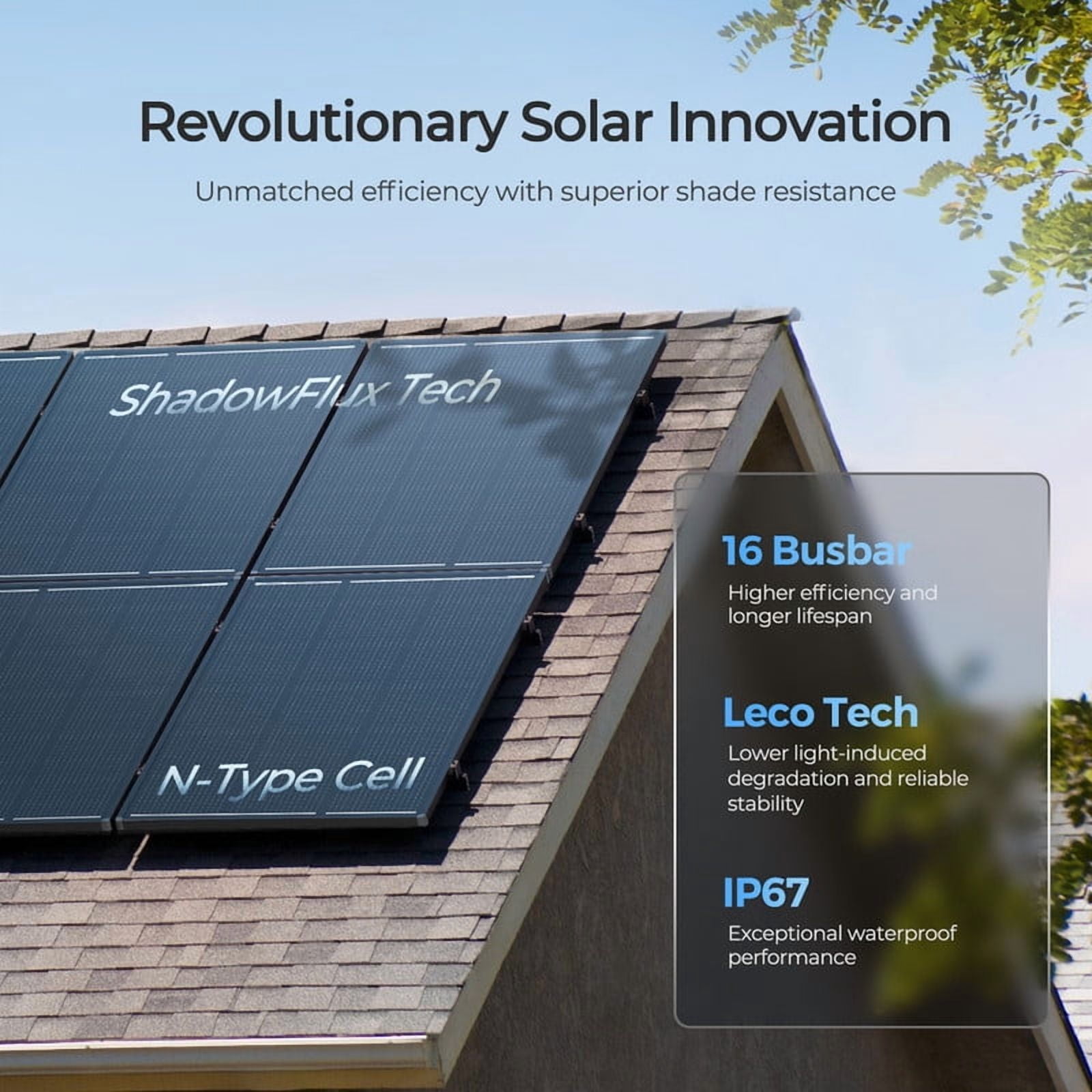

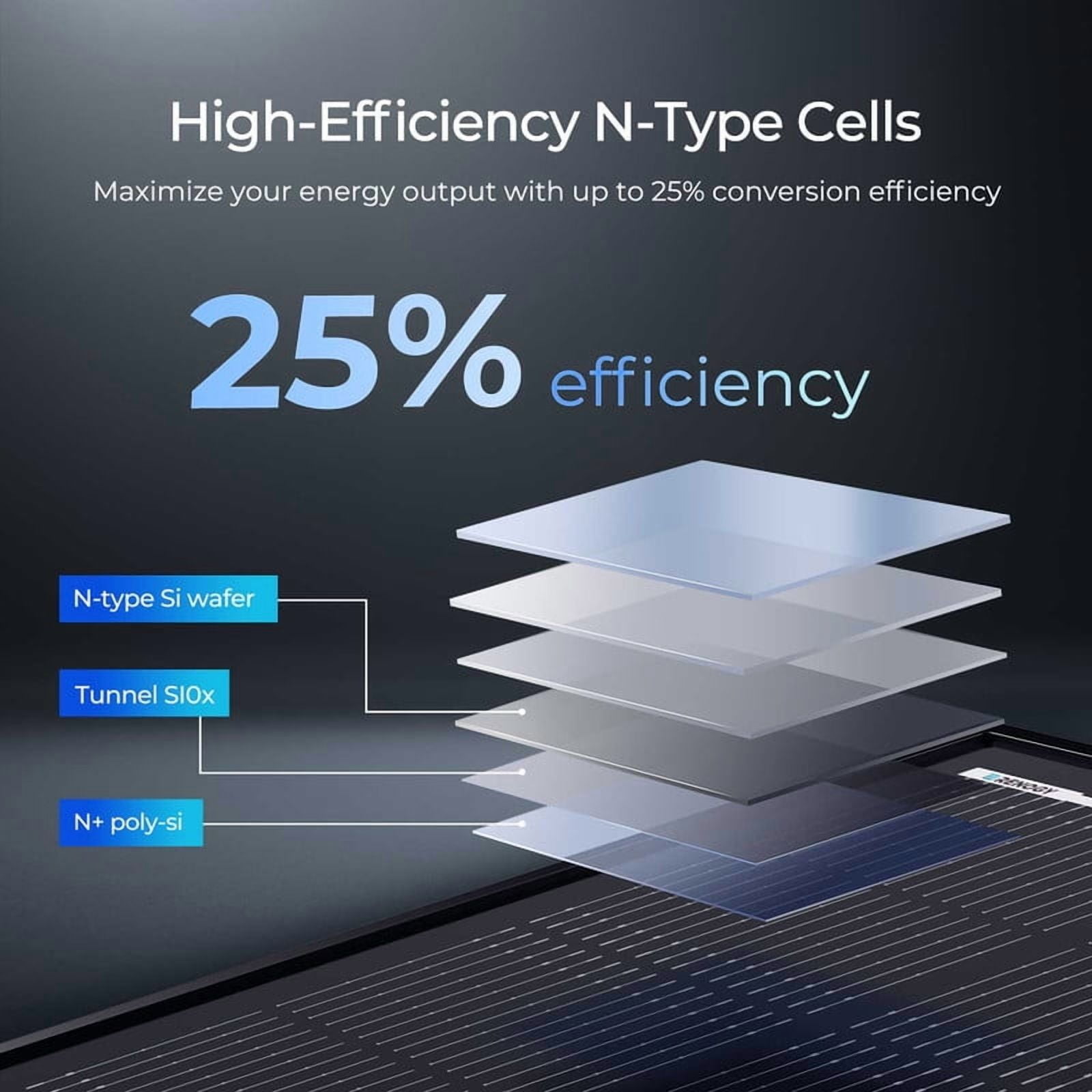

• 25% Ultra-High Efficiency with 16BB N-Type Cells

  Industry-leading 25% photoelectric conversion efficiency, outperforming standard PERC panels.

  16-busbar cell technology reduces microcrack risks by 40% and extends lifespan by 15%, ensuring decade-long reliability.

• Space-Saving, Adventure-Ready Design

  10% smaller and lighter than conventional 120W PERC panels—ideal for RVs, boats, or tight rooftops.

  Pre-drilled holes and a 1.1mm reinforced aluminum frame enable quick, secure installation on any surface.

• Military-Grade Resilience

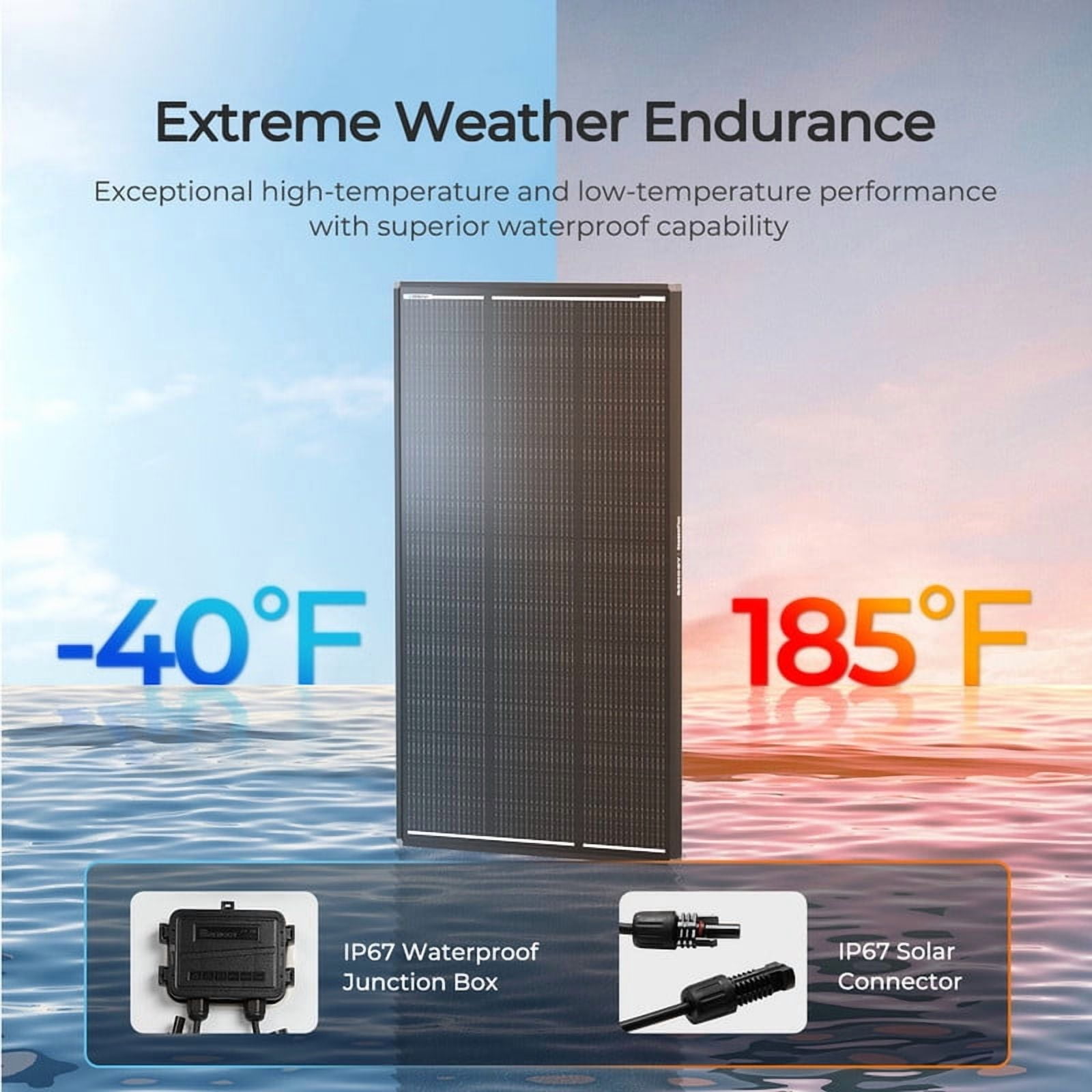

  IP67-rated encapsulation and corrosion-resistant materials withstand heavy snow (5400Pa), 130mph winds, and hail.

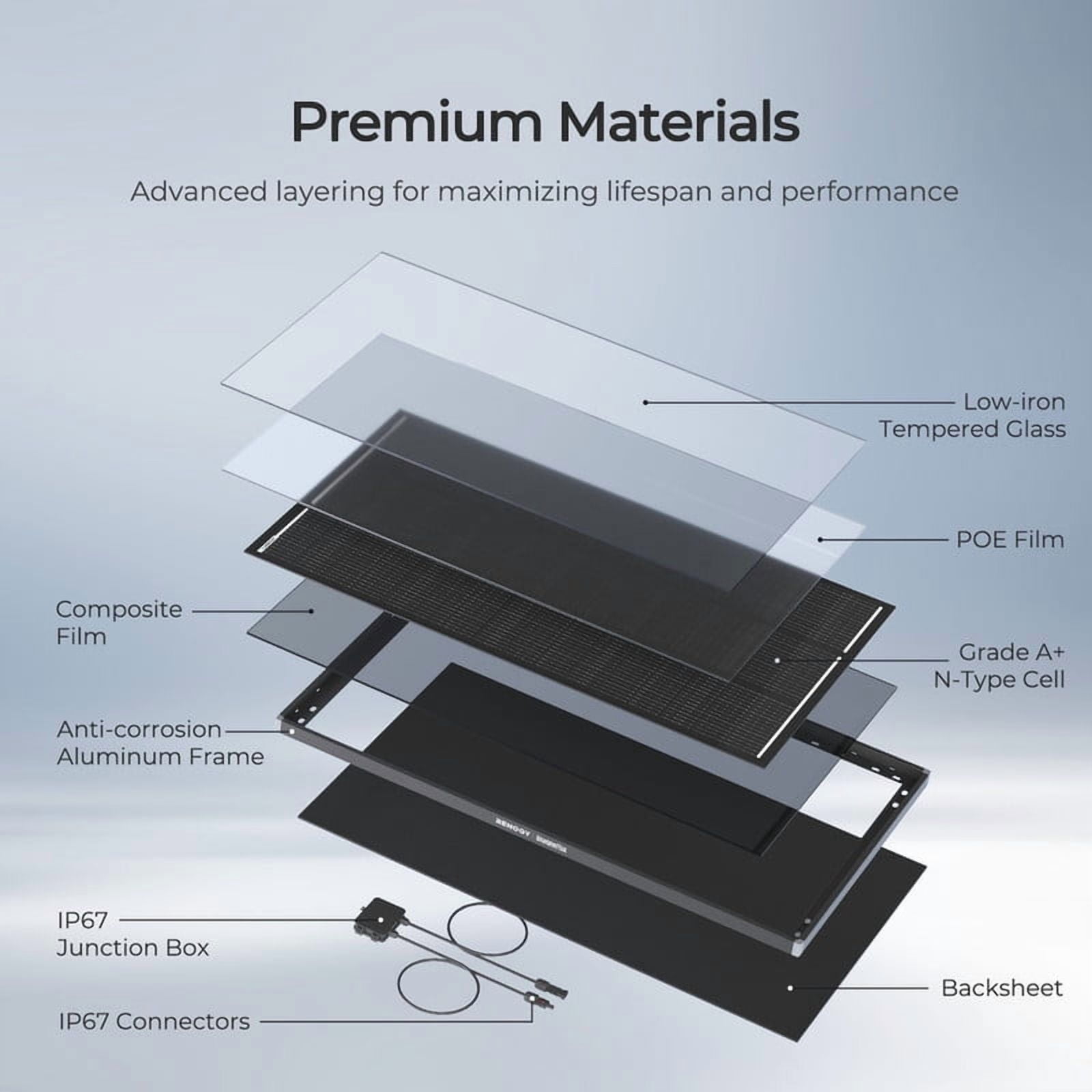

  Advanced EVA film and polyamide corners enhance water vapor resistance, preventing degradation in humid or extreme climates.

• TECHNICAL SPECIFICATIONS

  Max Power at STC: 120W

  Open Circuit Voltage: 33.69V

  Short Circuit Current: 4.57A

  Optimum Operating Voltage: 28.89V

  Optimum Operating Current: 4.21A

  Maximum System Voltage: 1000VDC

  Maximum Series Fuse Rating: 15A

  Module Efficiency: 20.7%

  Operating Temperature: -40°F~185°F / -40℃~85℃

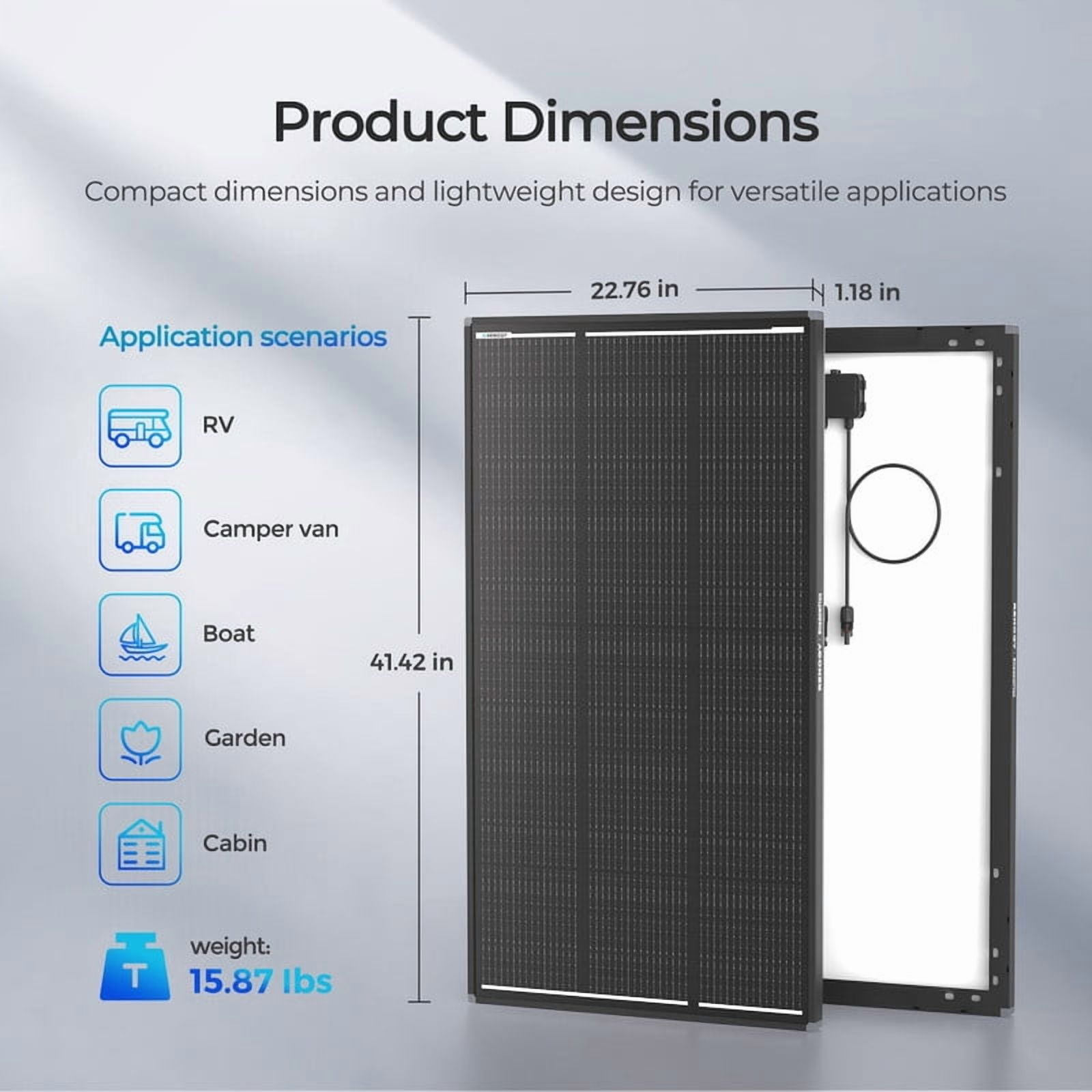

  Dimensions: 1262x764x30mm/49.69x30.1x1.2in

  Weight: 6.80kg/15.87lbs

• WARRANTY FIRST, ALWAYS

  ✔10-Year Material Warranty: Defects? We’ve got you covered.

  ✔Performance Guarantee: 95% output at 5 years, 90% at 10 years, 80% at 25 years.

  ✔Weatherproof Durability: Corrosion-resistant frame + tempered glass for decades of harsh weather survival.

• WHY CHOOSE RENOGY?

  Since 2010, Renogy has been on a mission to change the way the world uses energy.

  We've delivered 5 million solar solutions worldwide, helping countless individuals and families embrace renewable energy. Our range spans flexible panels for seamless integration, rugged rigid panels for permanent setups, and portable options for reliable power on the go.

  Constantly innovating, we aim to empower 50 million people with energy independence by 2030.
